Deck Over · Stock PE26-0115
2026 1420 Deck Over
- Payload
- 11,320 lbs
- Deck length
- 20'
- Loading angle
- 14 °
$18,967
Details Timpte Deck OverPowerhouse

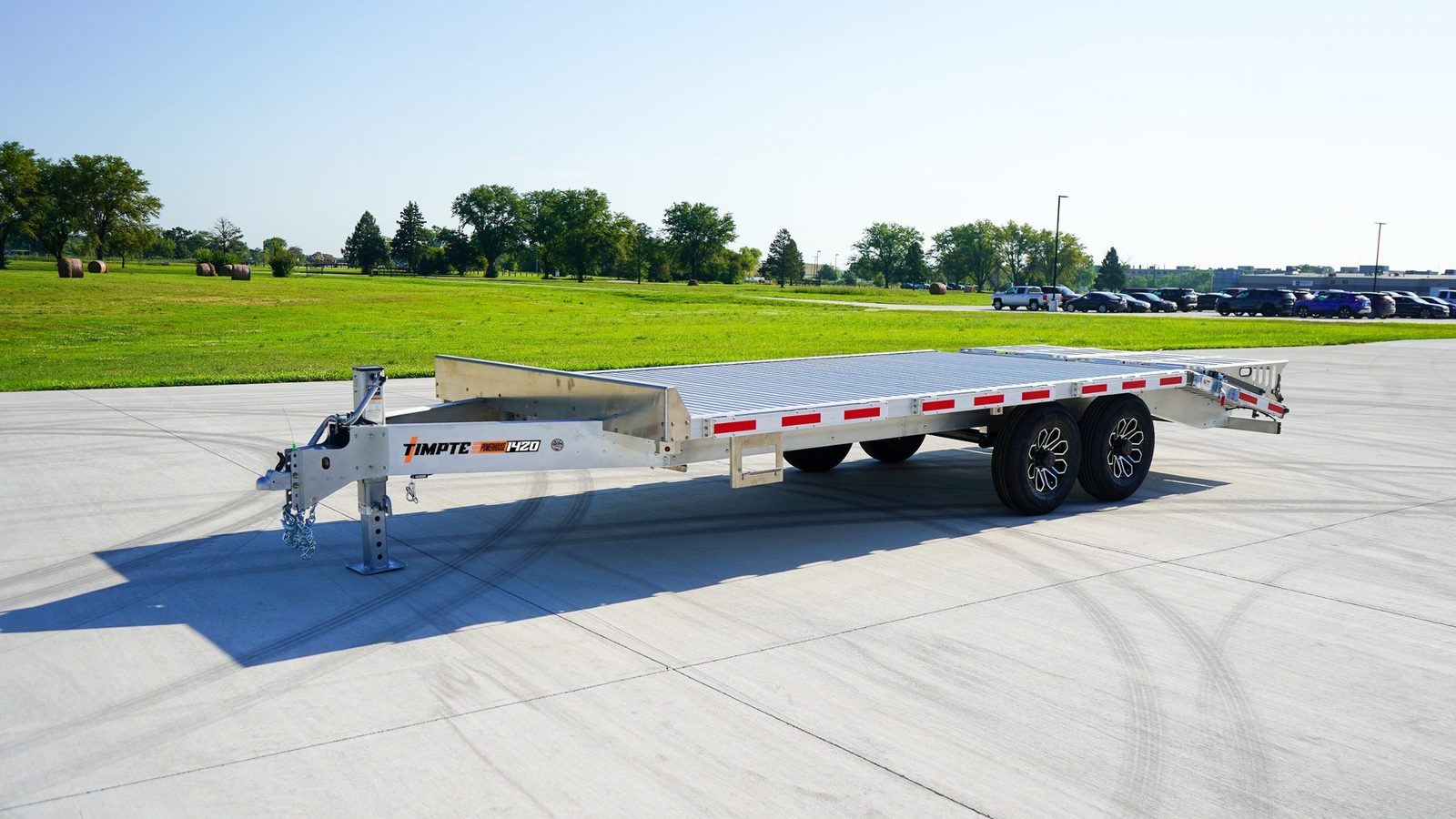

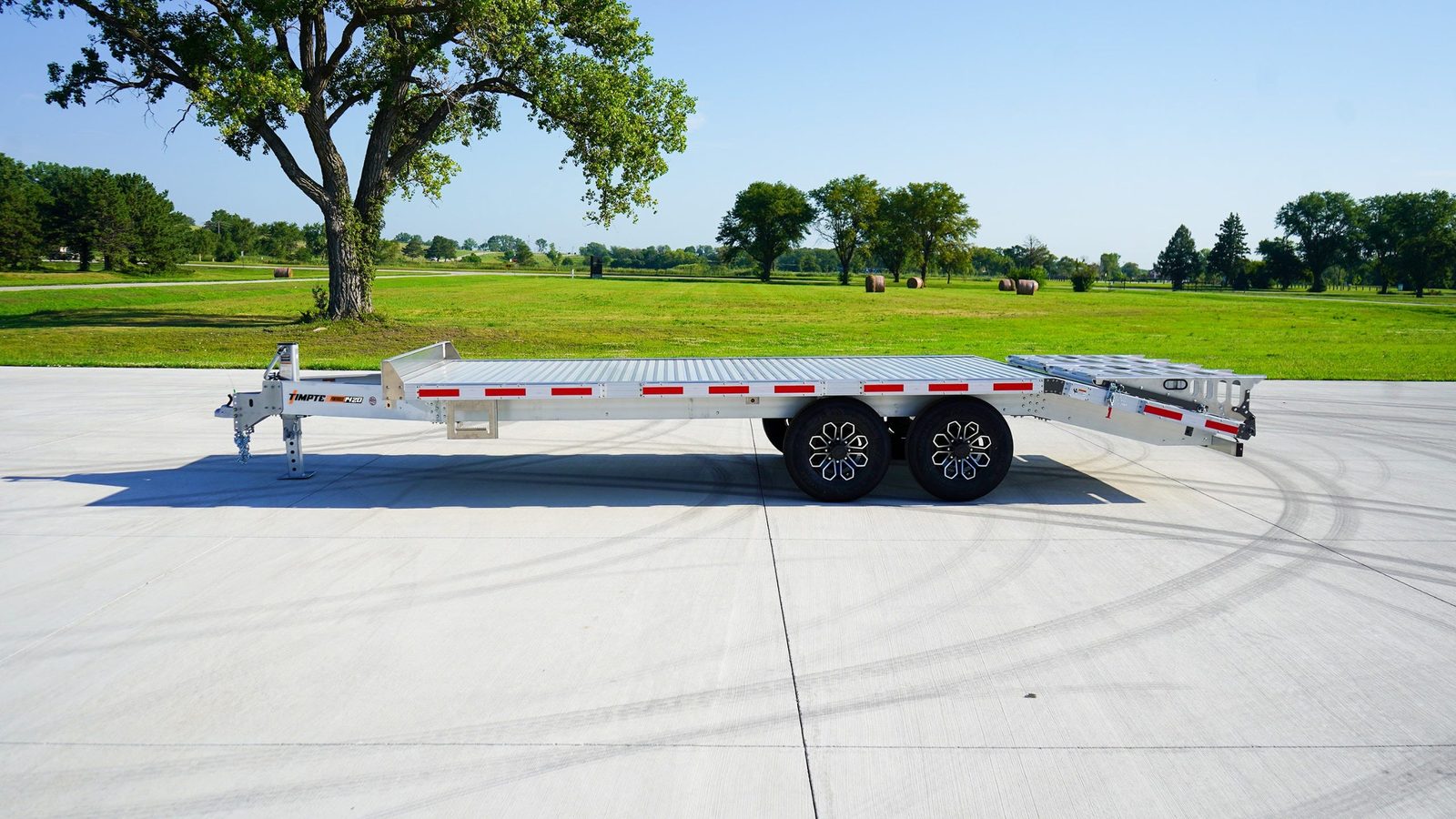

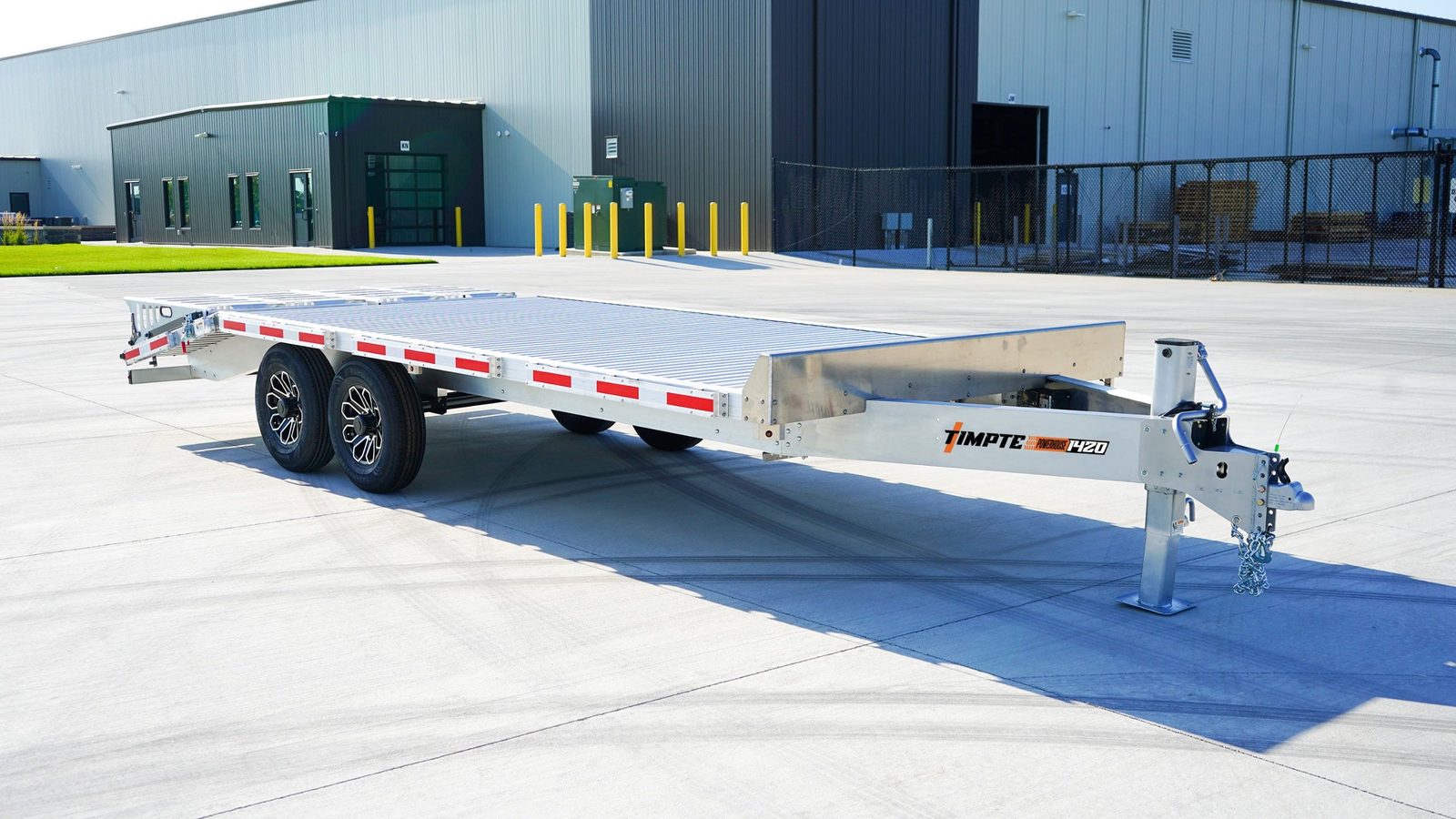

1420 Deck Over
Deck-over aluminum equipment trailer with 14,000 lb GVWR.
From $18,195
MSRP before options, doc fee, tax, tag & title.
- Payload
- 11,320 lbs
- Deck length
- 20'
- GVWR
- 14,000 lbs
- Deck width
- 98.25"
- Loading angle
- 14 °
- Hitch
- bumper
1420 Deck Over trailers in stock
Specifications
| Payload | 11,320 lbs |
|---|---|
| Deck length | 20' |
| GVWR | 14,000 lbs |
| Deck width | 98.25" |
| Loading angle | 14 ° |
| Hitch | bumper |
| Deck height | 35 in |
| Empty weight | 2,680 lbs |
| Loading system | Deck over with ramps |
| Usable deck | 20' x 98.25" |
| Overall length | 25' 8" |
| Overall width | 102 in |
| Axle / suspension | 7K Fixed Rubber Torsion |
| Brakes | Electric Self Adjusting |
| Tires | ST235/80R16E - 10 ply |
| Coupler | 2-5/16" |
| Jack rating | 12,000 lbs |
| Stake pockets | 12 |
| Lighting | LED |
| Dovetail Length | 60" |
| Wheel Size | 16" |
| Tires | ST235/80R16E - 10 ply |
| Number of Lug Bolts | 8 per wheel (32) |
| Axle/Suspension | 7K Fixed Rubber Torsion |
| Brakes | Electric Self Adjusting |
| Coupler | 2-5/16" |
| Coupler Position | Adjustable |
| Jack Style | Side Crank |
| Jack Rating | 12,000 lbs. |
| Stake Pockets | 12 per side (24 total) |
| Lighting | LED |
| Deck Height | 35" |
| Usable Deck Size | 20' x 98.25" |
| Empty Weight | 2,680 lbs. |
| Overall Width | 102" |
| Overall Length | 25' 8" |
| Stationary Deck Length | 24' |
| Ramp Length | 4' |
| Tongue Length | 68" |
Popular options

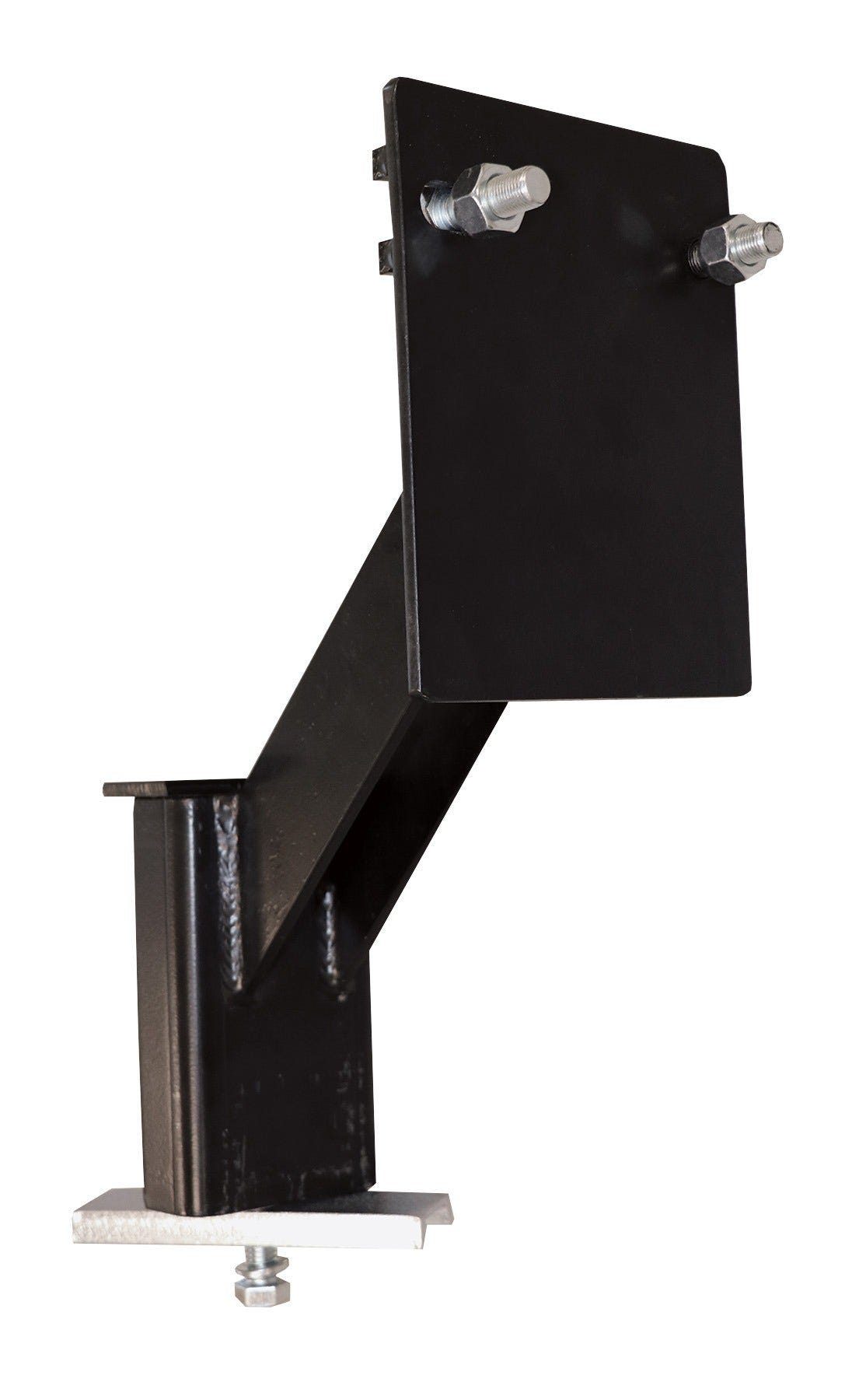

- Spare Tire Holder - Powerhouse Series+$294.77

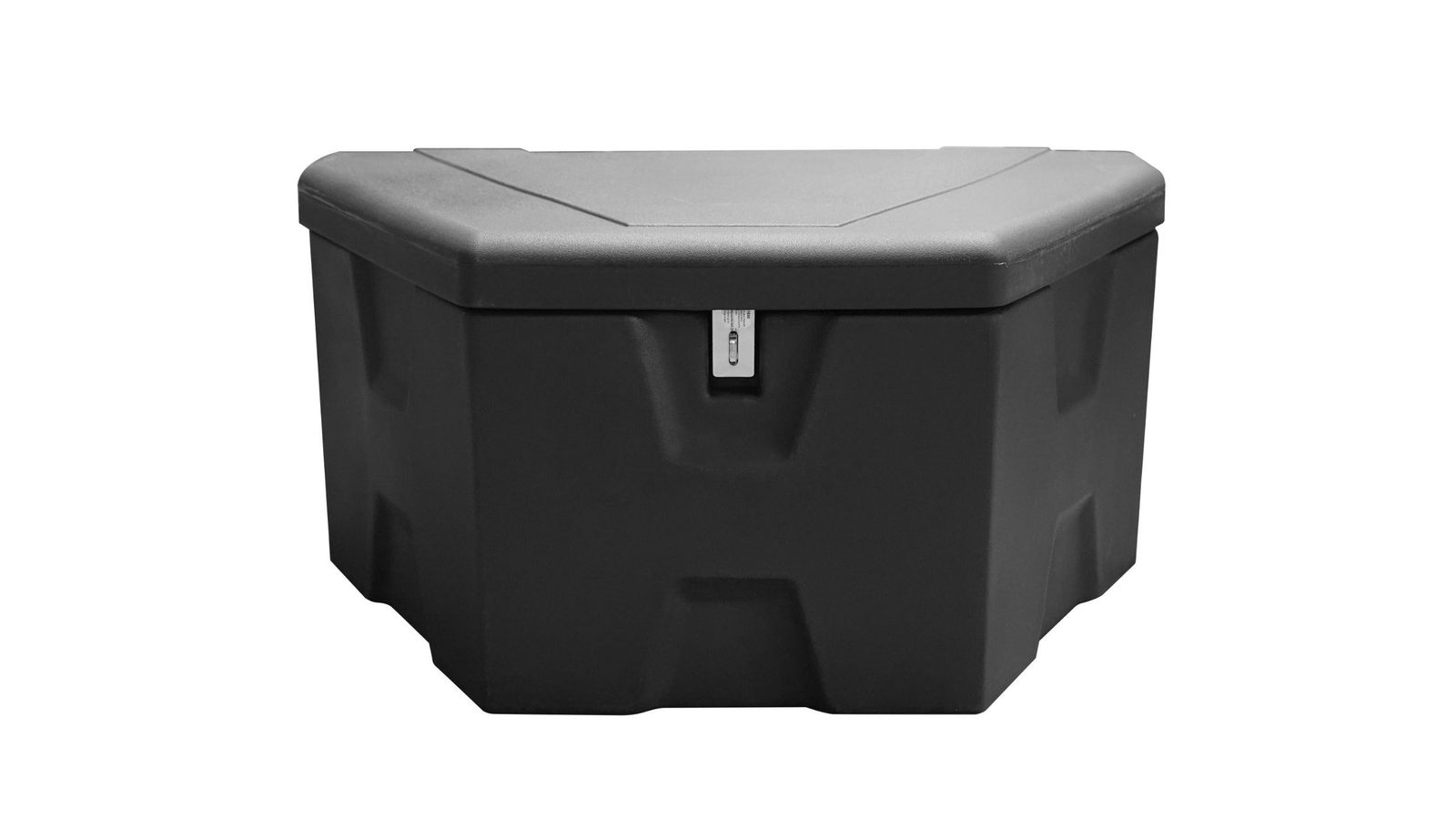

- Toolbox & Plate for Powerhouse Series+$772.47

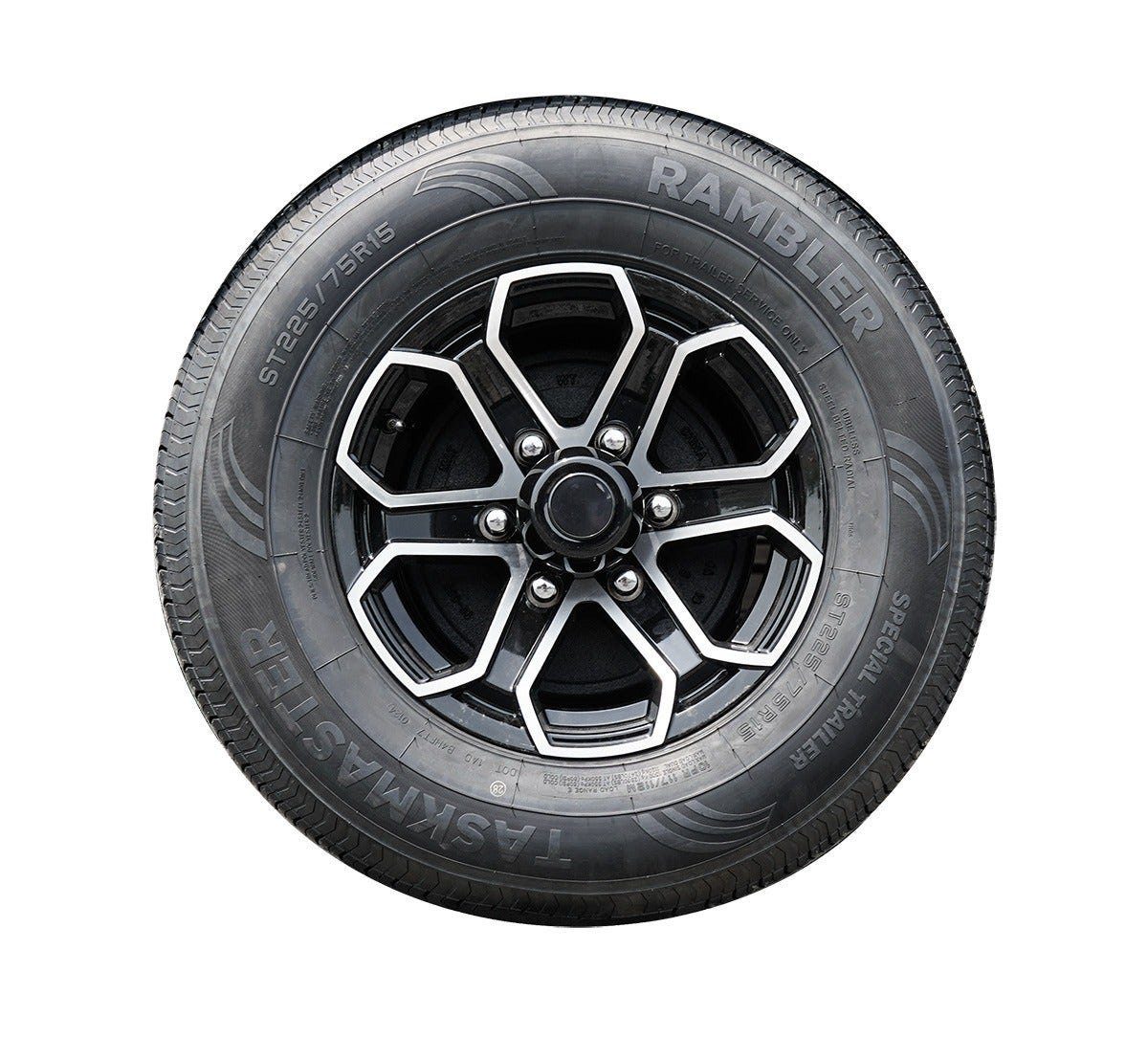

- Wheel & Tire - 16"+$364.60
Ask about the 1420 Deck Over
Payload math, tow vehicle, options worth it and what to skip. Get a straight answer any time.
Built different
Why the 1420 Deck Over
All Aluminum Construction
Mechanically fastened joints replace failure-prone structural aluminum welds. Proprietary extruded aluminum components, such as the main c-channel frame, side rails, and deck material, enable these lightweight trailers to deliver reliable performance that is easy to haul.

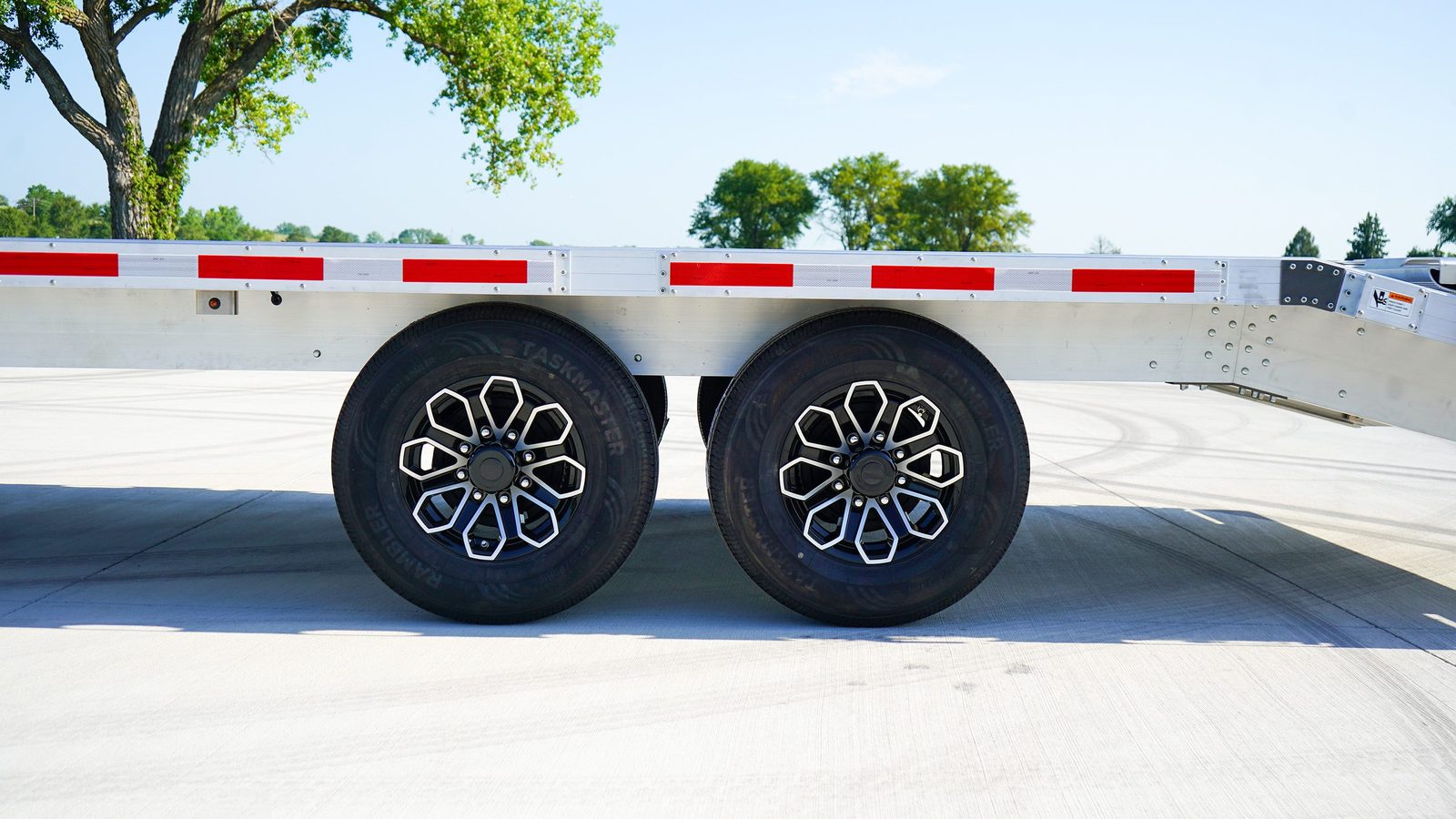

Deck Over System
The deck-over design positions the trailer deck above the wheels, providing the maximum deck width for hauling oversized equipment and materials. This wider platform offers greater versatility, making it easier to load a variety of cargo while maximizing usable deck space.

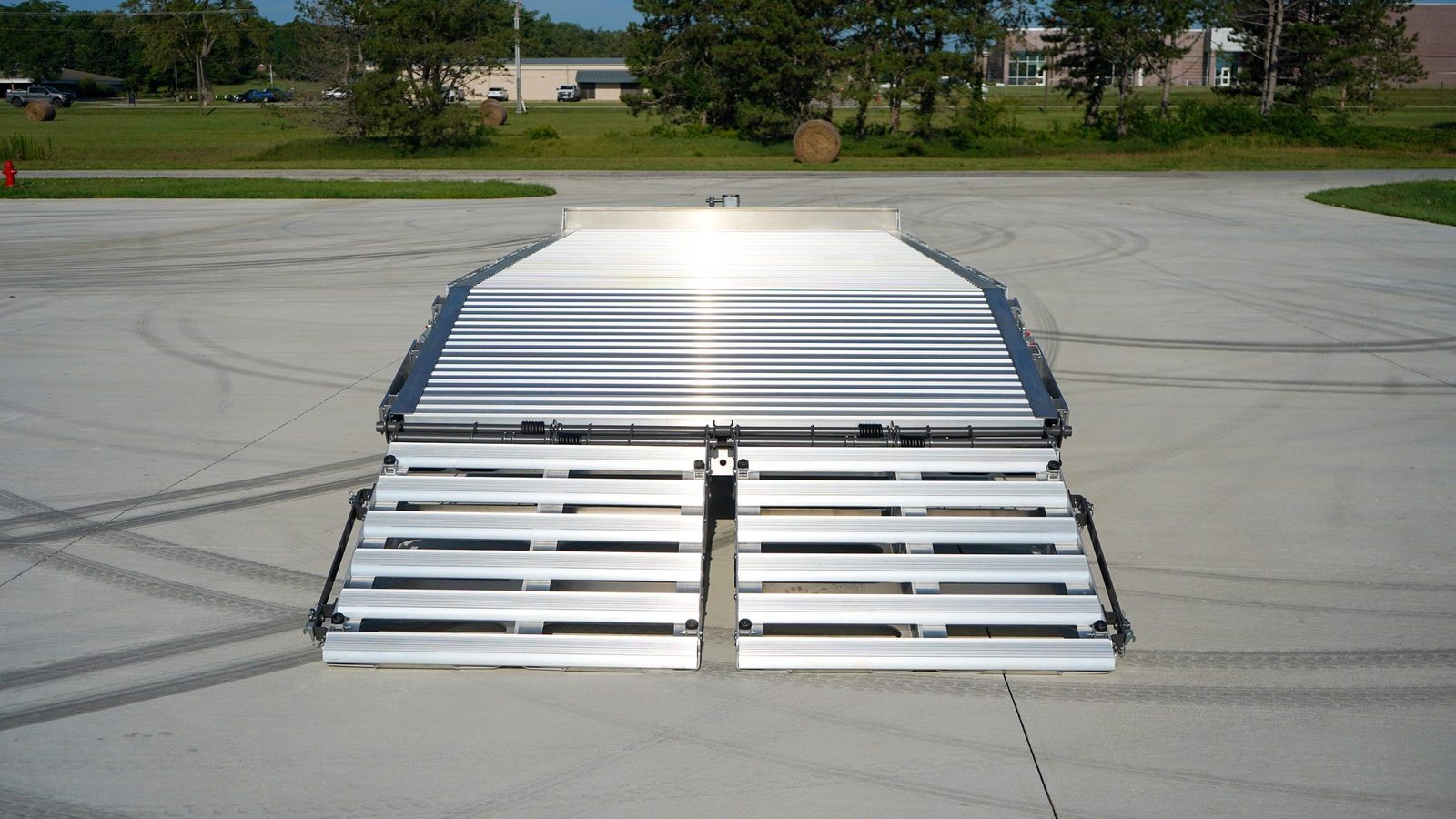

50/50 Ramps
The manual spring-assist 50/50 ramps are designed for easy lifting and lowering. The ramps can be locked securely in either the vertical or horizontal position.

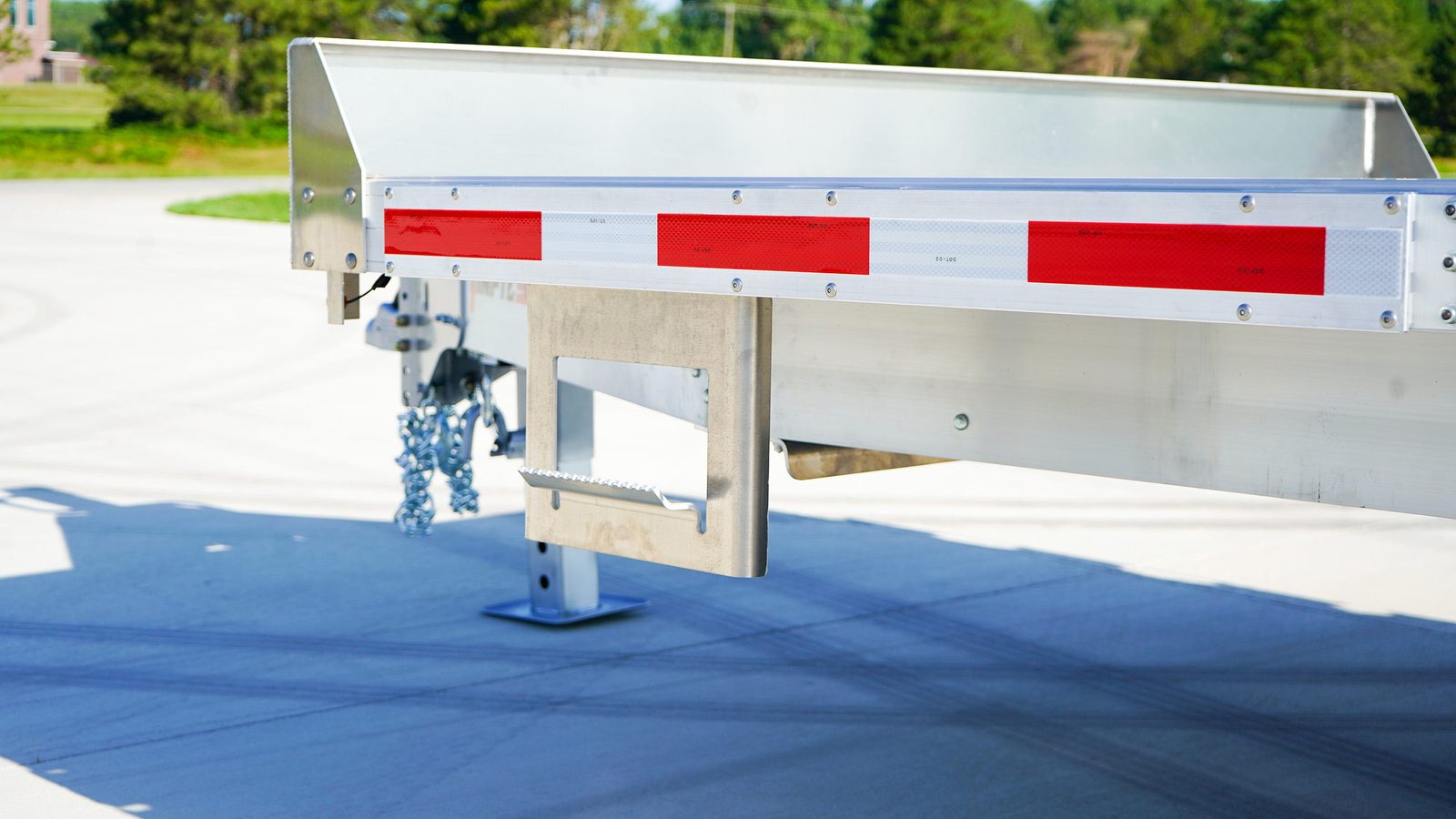

Side Step
The integrated side step provides convenient access to the trailer deck when loading, unloading, or securing cargo.
Stake Pockets
With 24 total stake pockets (12 on each side), the trailer provides convenient tie-down locations for securing equipment and cargo.
